BACring

Active fire protection technology

Fire safety regulations and the protection of building occupants require architects and planners to implement a reliable smoke damper control system. Such a system helps prevent the spread of smoke and fire through the building's ventilation network and supports safe building operation in the event of a fire.

Large buildings with up to 10,000 data points place high demands on a smoke damper control system.

To ensure maximum reliability, the system must handle large numbers of data points, support long communication distances, enable redundant network structures, provide response times in the millisecond range, and automatically detect and isolate faults.

Simple, robust, and comfortable

BACring is integrated with standard cabling and automatically identifies connected components during setup. The system is BTL-certified and BACnet-compliant, that is, compatible with the de facto standard bus system in building automation. The BACnet conformity has been BTL-certified.* The open structure makes the BACring expandable for future applications and supports data transmission to sensors and actuators from other manufacturers. The UL-prepared hardware is structurally open to future interface standards. BACring also proves to be pleasantly flexible when it comes to being integrated into dashboards of higher-level systems.

Advisory

New, but based on decades of experience

The implementation of BACring incorporated the experience that development engineers and programmers from BACring gained with the market-leading smoke flap control RKS1000^*, which has been in production since 1997.

The decision to develop BACring was made in order to meet current and future requirements for a modern, powerful, and flexibly expandable fire protection system. Because, in addition to the reliable monitoring of thousands of data points, BACring offers a wide range of interfaces for connecting to other building management systems as well as to widely used sensors and actuators from many manufacturers. This also includes the mapping of common BACnet functions.

Market launch and distribution under this name by a Davidsmeyer & Paul customer (Today: Eurocircuits Erkelenz GmbH)

Compatible

BACring is compatible with already installed modules such as RKS1000^*. This enables cost-saving partial modernization of existing fire protection systems: while modules continue to be used, the installed control panel is replaced with the BACring solution. This can update the overall system and allow for expandability for future needs.

The system is developed and produced in Germany.

Market launch and distribution under this name by a Davidsmeyer & Paul customer (Today: Eurocircuits Erkelenz GmbH)

Plant size
- Control of up to 2,500 data points per DPB-Buscontroller (approx. 625 smoke dampers)

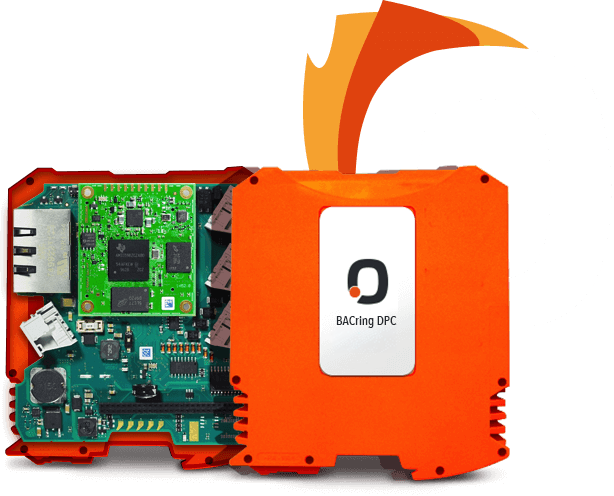

- Up to 4 DPB-Buscontroller per DPC-Controller (corresponds to up to 10,000 data points and a total cable length of up to 20 km)
- Modular expandability
Security
- Error localization, self-diagnosis, and error handling for bus and module defects

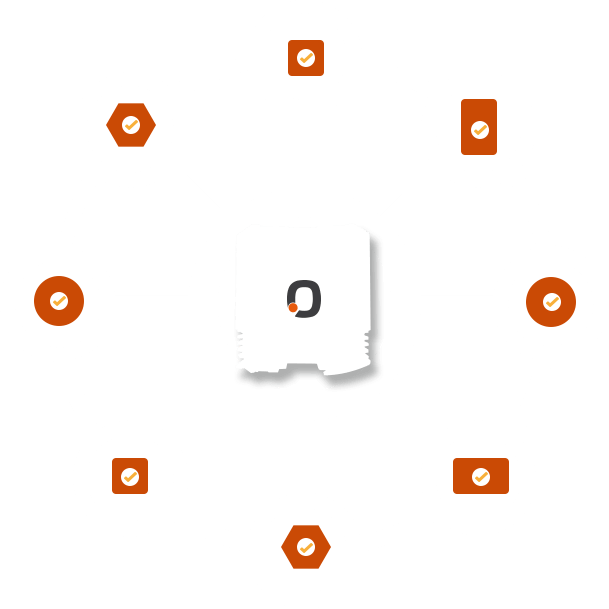

- Ring bus topology with redundant lines for protection in the event of a fault
- Tolerant to short circuit, reverse polarity, power failure (UPS)
- Additional security possible via redundant of DPC and DPB
- Fire resistance tests: Fire test for verification of functional integrity with external flame exposure for a maximum of 95 minutes
- Adaptive escape route control possible
- Network-wide operation and configuration through a (secure) SSL-encrypted web front end
Efficiency
- Central power supply via the bus
- System-wide response in about 1.5 seconds to level changes
- Response time of less than 1 minute with bus-wide addressing of all components
- OPC/UA in preparation
Easy installation
- Uses standard wiring
- Use of radio technologies for wireless bridging of individual routes
- Self-initialization by identifying connected components during initial setup
- BACnet-compliant and compatible with common building management applications
- Uses BACnet Version 1 Revision 22
- Automatic data exchange between DPB-Buscontrollers
- BACnet network topologies ISO 8802-2 (also as BACnet/Ethernet)
- Fanless
- Guided commissioning by BACy, our user-friendly assistant
Inexpensive
- Inexpensive modules
- Only 1 DPC-Controller with 4 DPB-Buscontrollers for 10.000 data points (approx. 2,500 smoke dampers)
- Works without separate module power supplies
- Low installation costs
- Low maintenance costs thanks to integrated self-diagnostics and active error messages

Your BACring system

We would be happy to advise you on the use of BACring in your completed or planned building project. We are also happy to provide you with help and advice for special requirements and individual system solutions.

Make contact

Innovative with support

Of course, we have complete confidence in BACring and its capabilities. However, this powerful smoke damper control system is not only well received by us: its development is being funded under the Central Innovation Programme for SMEs (ZIM) by the Federal Ministry for Economic Affairs and Energy, based on a resolution of the German Bundestag.
