BACscan

Description

The BACscan is a portable, handheld diagnostic and commissioning device for BACring modules (DPM). It supports qualified electricians and commissioning engineers during installation, testing, troubleshooting, and bus setup of a BACring ring bus system – independently of the DPC-Controller and DPB-Buscontroller.

download pdf datasheet

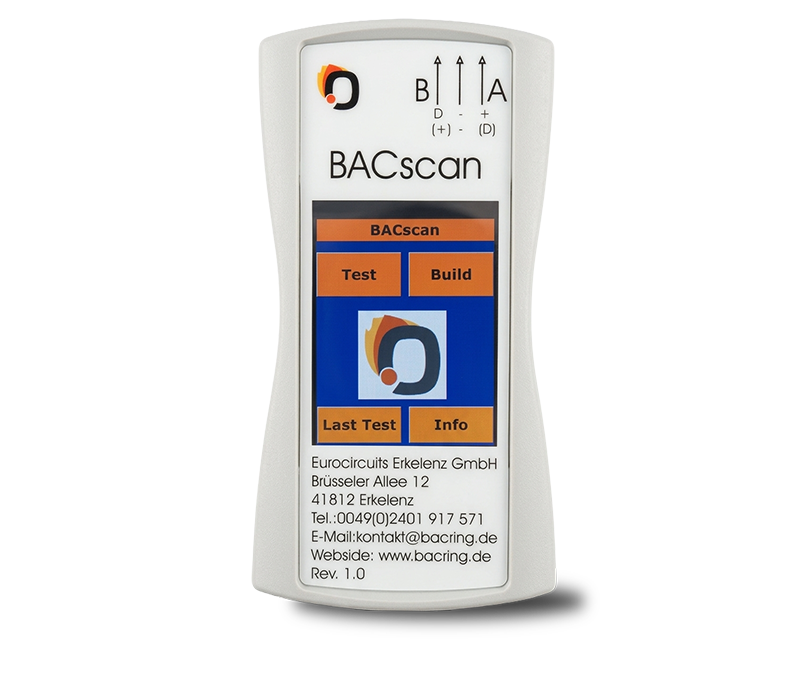

BACscan

Diagnostics and Commissioning Directly at the Ring Bus

With the BACscan, BACring modules can be quickly tested, ring bus connections diagnosed, and new systems efficiently set up. The device operates autonomously and supports preliminary testing without a DPC-Controller or DPB-Buscontroller.

Application Areas
  • Installation of BACring ring bus systems
  • Single and dual module testing (DPM)
  • Ring bus fault diagnosis
  • Bus setup (Build function) for up to 50 modules
  • Preliminary testing without DPC-Controller and DPB-Buscontroller

Product images

  • BACscan product image 1

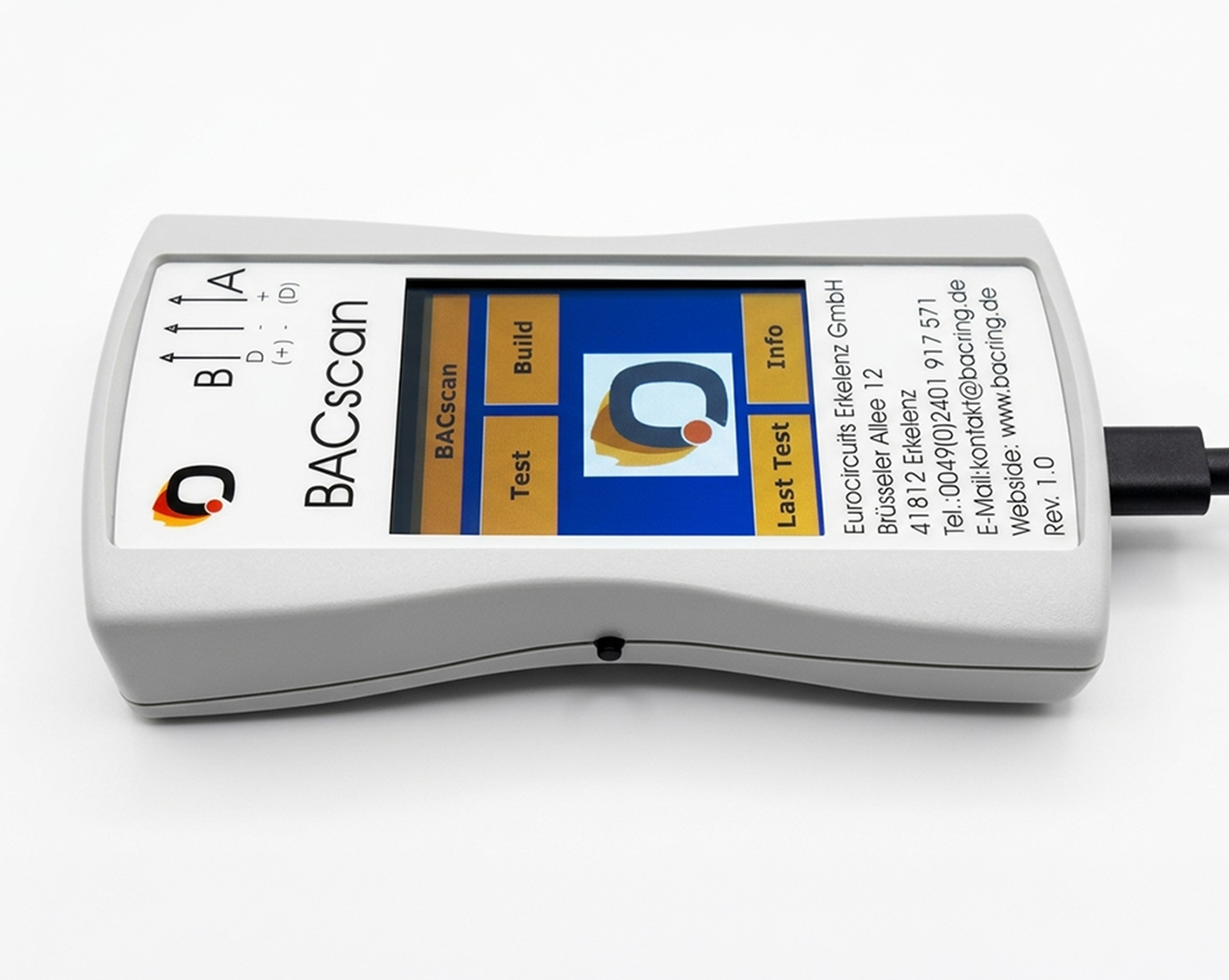

  • BACscan product image 2

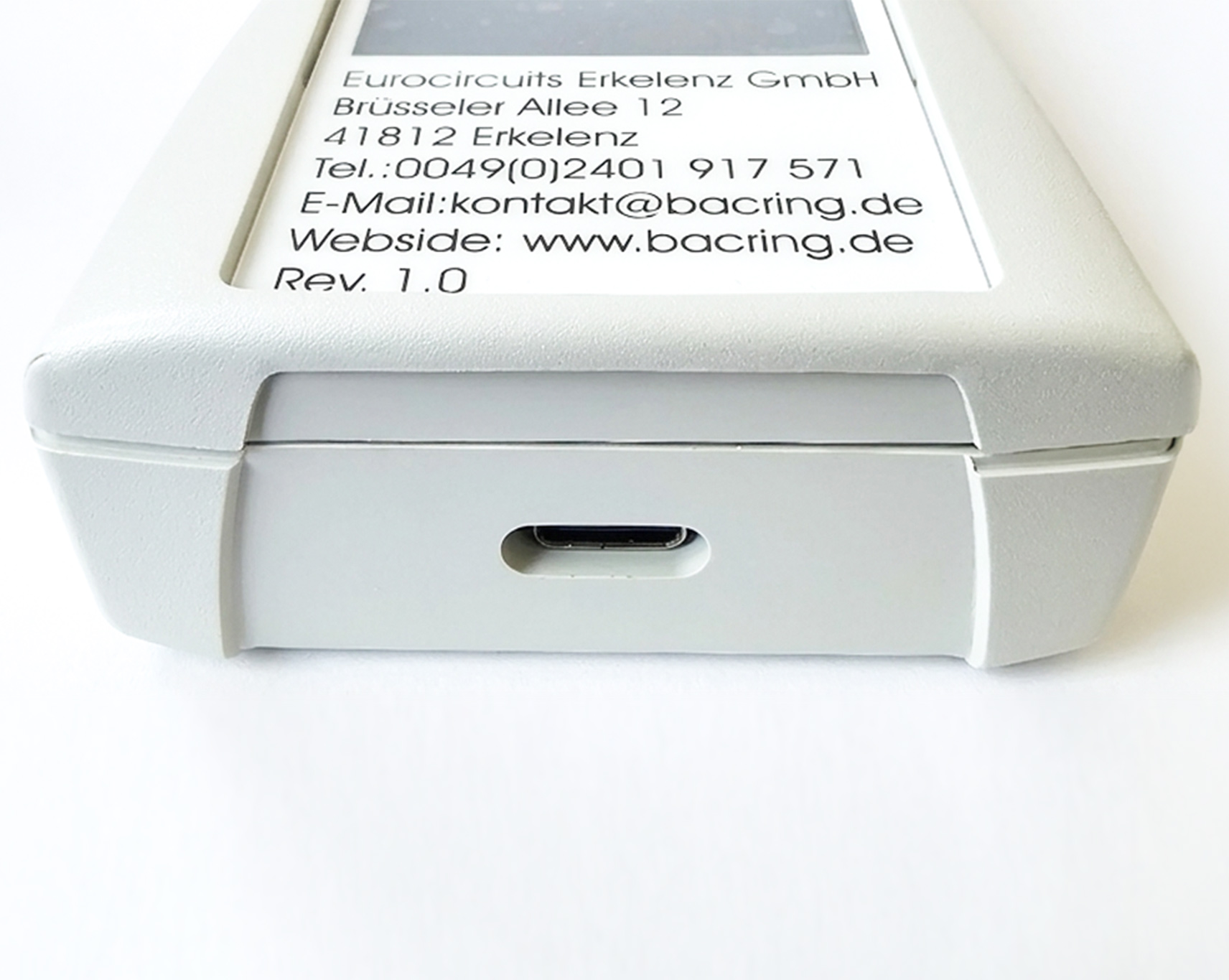

  • BACscan product image 3

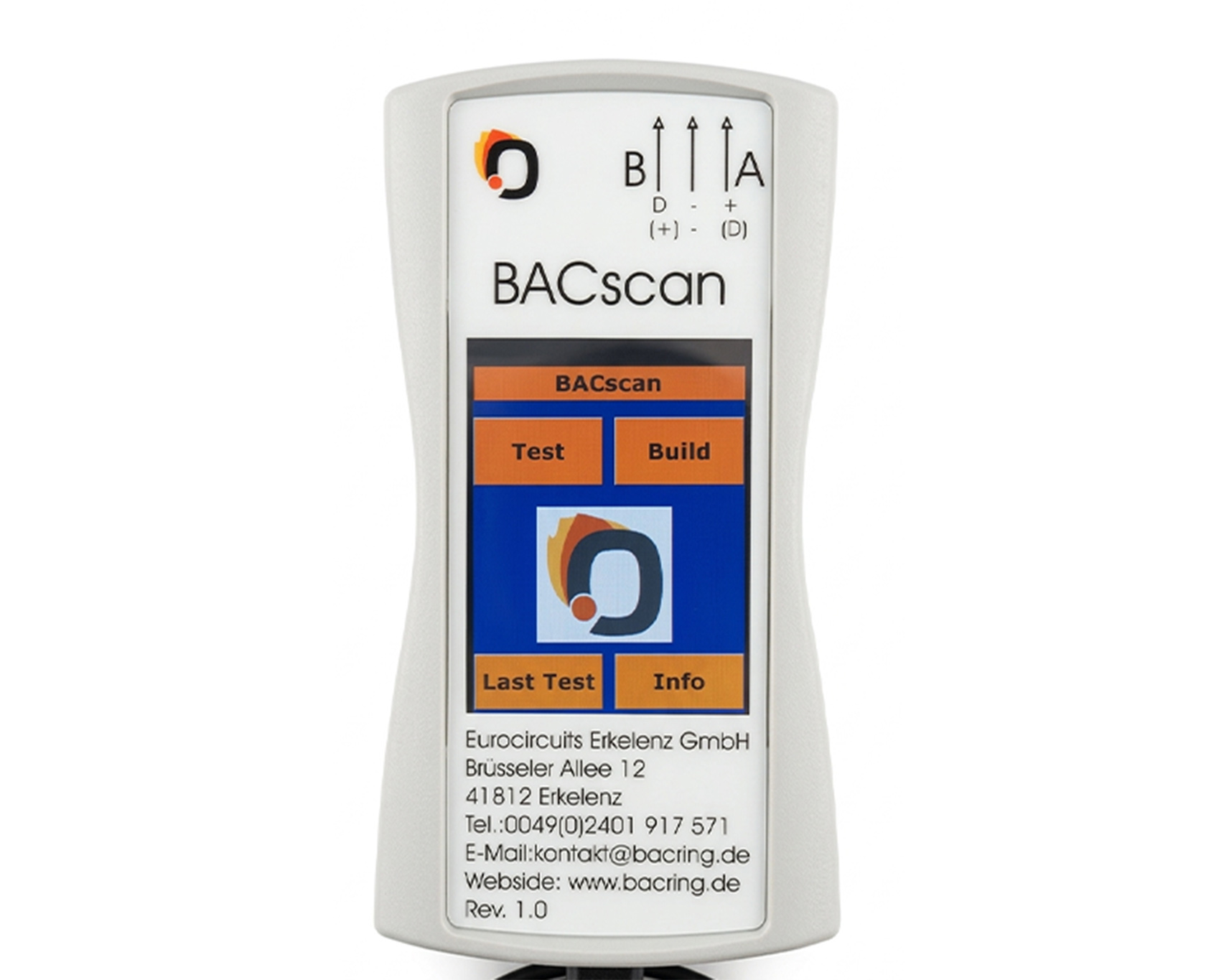

  • BACscan product image 4

Product overview

BACscan product overview

Functions

Test Functions

  • Testing of ring bus functionality
  • Testing of an individual DPM module via Port A or Port B
  • Testing of the ring bus connection between two DPM modules
  • Display of module type, serial number, and CRC status
  • Error detection for missing modules, short circuits at Port A or Port B, and bus voltage status

Build Functions (Bus Setup)

  • Commissioning of up to 50 DPM modules
  • Automatic detection of the physical connection sequence
  • Per-module display of ring position, serial number, module type, and firmware version
  • Detection of typical fault conditions such as "No more modules found", short circuit at Port A or Port B, and reached build limit

Last Test Function

  • Display of the last test results from the Test function

Info Function

  • Display of a QR code linking to the manufacturer's website


Controls & Display

  • Color touchscreen display
  • Side function button for direct triggering of Test, Build Start, and navigation


Power Supply

  • Powered via external power bank
  • Connection via USB Type-C
  • Supply voltage: 5 V DC
  • Power consumption: maximum 7.0 W
  • Automatic power-on when supply voltage is applied


Bus Interface

  • Connection for DPM fieldbus modules via included bus pins
  • Port A and Port B compatible
  • Included jumper cable for connection to control cabinet modules


Technical Notes

  • Operation only when ring bus is de-energized
  • The DPB-Buscontroller must not be in operation
  • No external voltage is permitted on the ring bus
  • Failure to comply may result in damage to BACscan, DPB-Buscontroller, and DPM modules


Technical Specifications

  • Power supply: 5 V DC via USB-C
  • Power consumption: maximum 7.0 W
  • Display: 2.4" TFT-LCD with resistive touch
  • Resolution: 240 x 320 pixels
  • Bus interface: Phoenix base connector MSTBA 2.5 / 3-G-5.08 for plugging in various adapters
  • Maximum number of modules in Build function: 50 BACring modules
  • Standards: DIN EN 61010-1, DIN EN 61326-1, DIN EN 55011
  • Environmental conditions: Operation from 0 °C to +50 °C, storage from -20 °C to +60 °C, 10% to 90% RH at 40 °C, non-condensing
  • Protection class: IP20
  • Dimensions (W x H x D): 119.3 x 64.9 x 26.5 mm
  • Housing: Bopla BS400 plastic housing
  • Weight: approx. 1.3 kg
