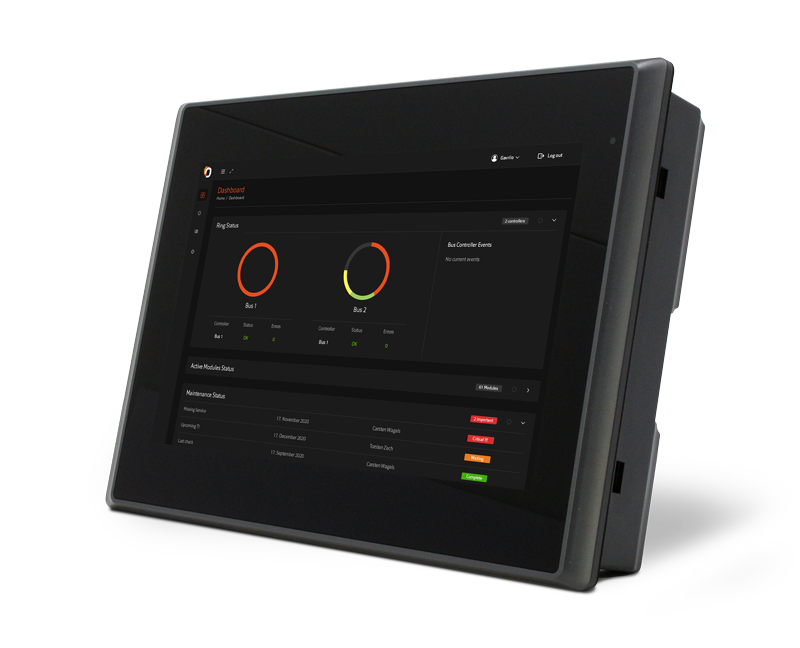

DPD-T10C Display

Description

DPD-Display supplements the BACring DPC-Controller with a display panel with a touchscreen. You can use this to control the system circuits and operate them directly.

Download PDF Datasheet

Everything at a glance

DPD-Display is designed for the display and control of individual inputs and outputs or damper drives. The current states and component information can be easily read and controlled via the touchscreen. Up to 16 programmable buttons are presented on the home screen. For larger installations, this first page can be expanded to include additional pages with switching elements.

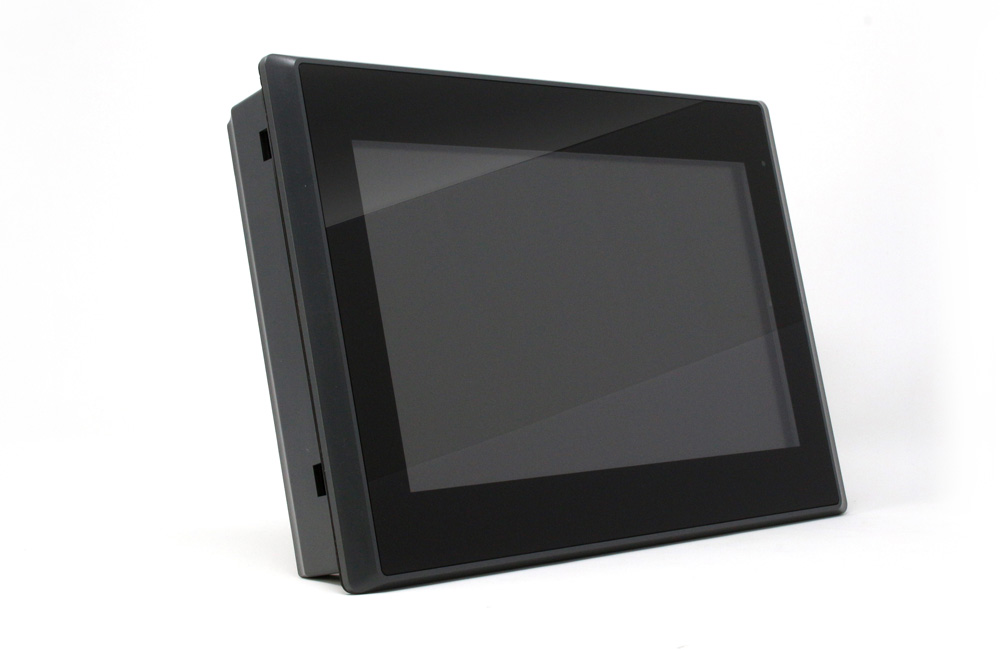

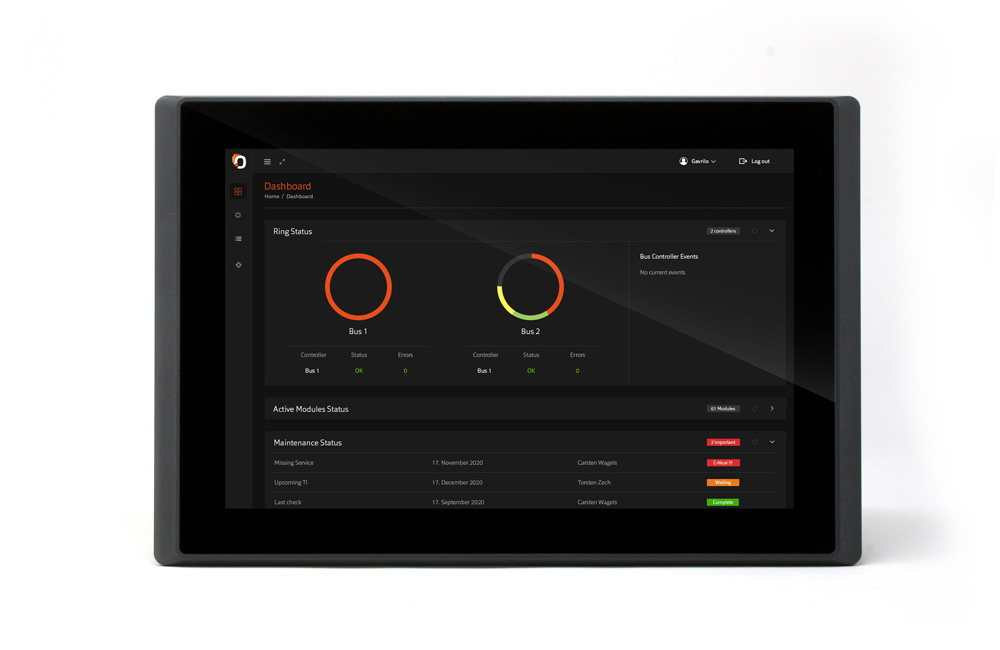

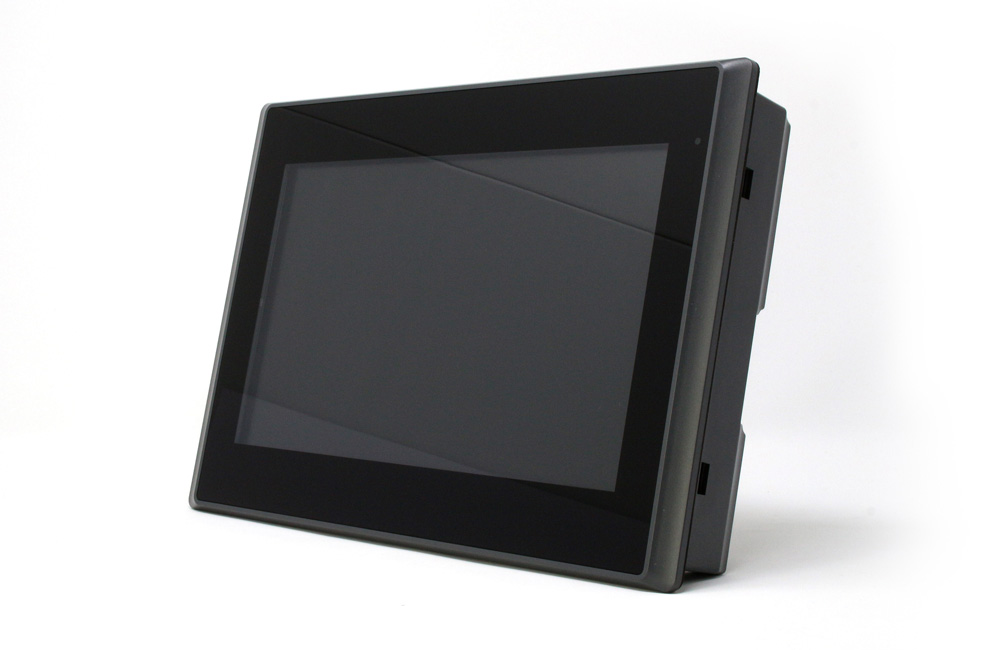

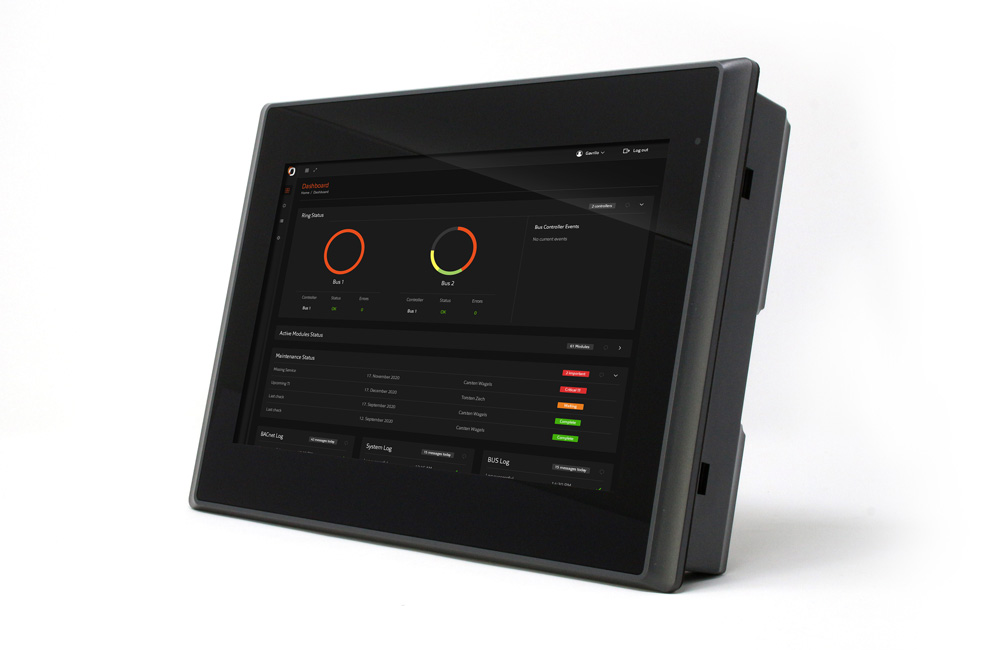

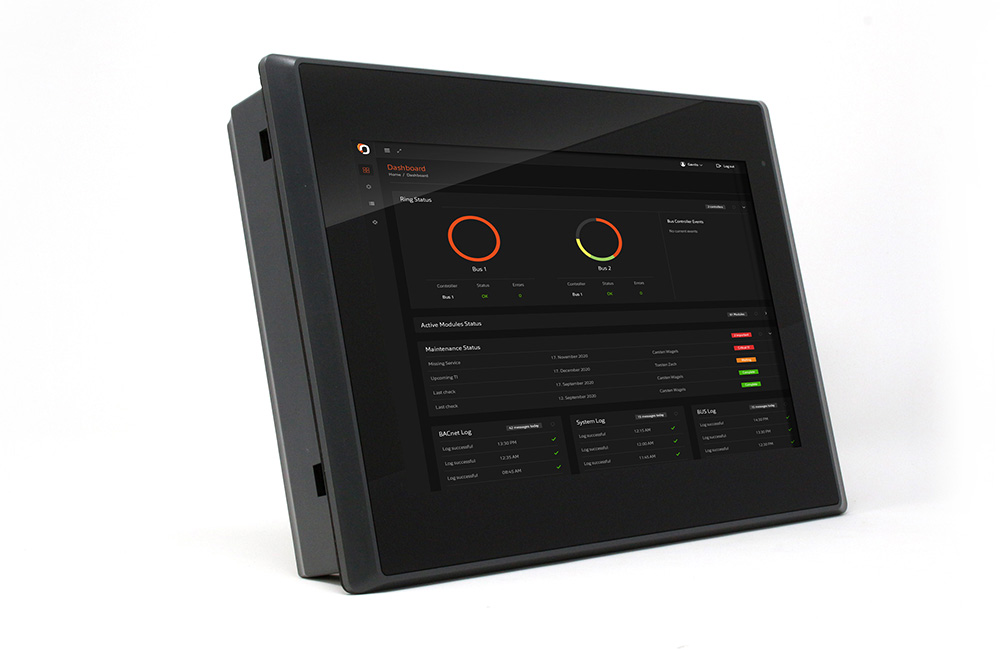

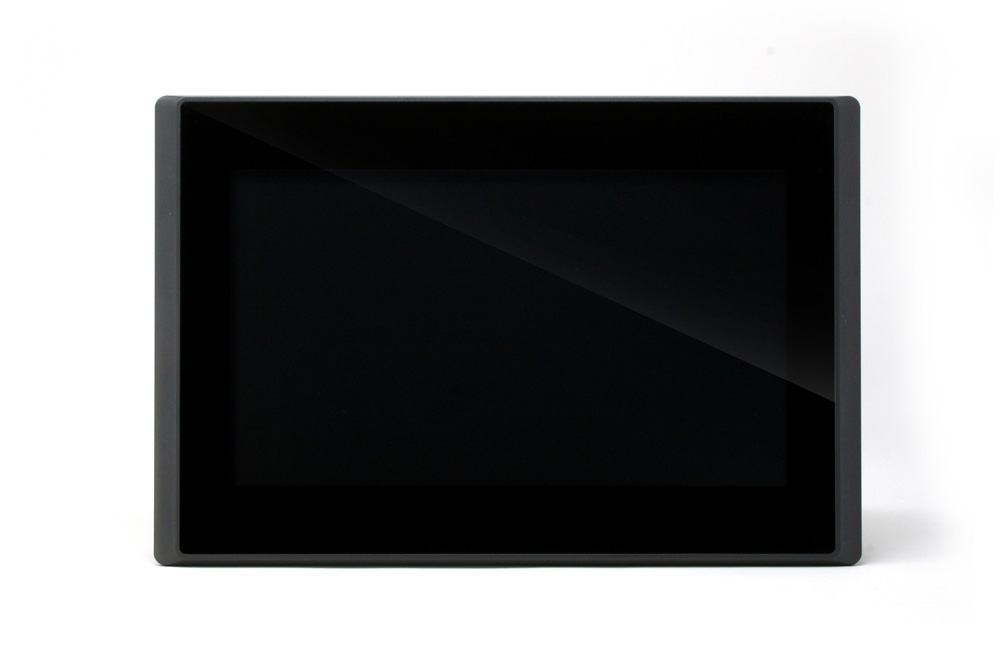

Product images

Further information

Power supply

9 VDC to 36 VDC
Power consumption: max. 7.0 W

Display

10.1“ TFT-LCD

Resolution

1024 x 600 pixels

Aspect ratio

16:9

Brightness

250 cd/m²

Reading angle

H: 140° / V: 120°

Touch screen

Projected capacitive touchscreen

Interfaces

Ethernet 1 x 10/100/1000 BaseT(X), RJ45

Certifications

CE, UL, FCC Class A

Maintenance

Maintenance-free

Ambient conditions

Operation: 0 °C to +50 °C
Storage: -20 °C to +60 °C
10% to 90% RH at 40 °C, non-condensing

Protection class

IP65 on the front

Dimensions (W x H x D)

285 x 189 x 50 mm

Housing

Plastic housing

Mounting

VESA 100 x 100; panel mounting

Weight

Approx. 1.3 kg
