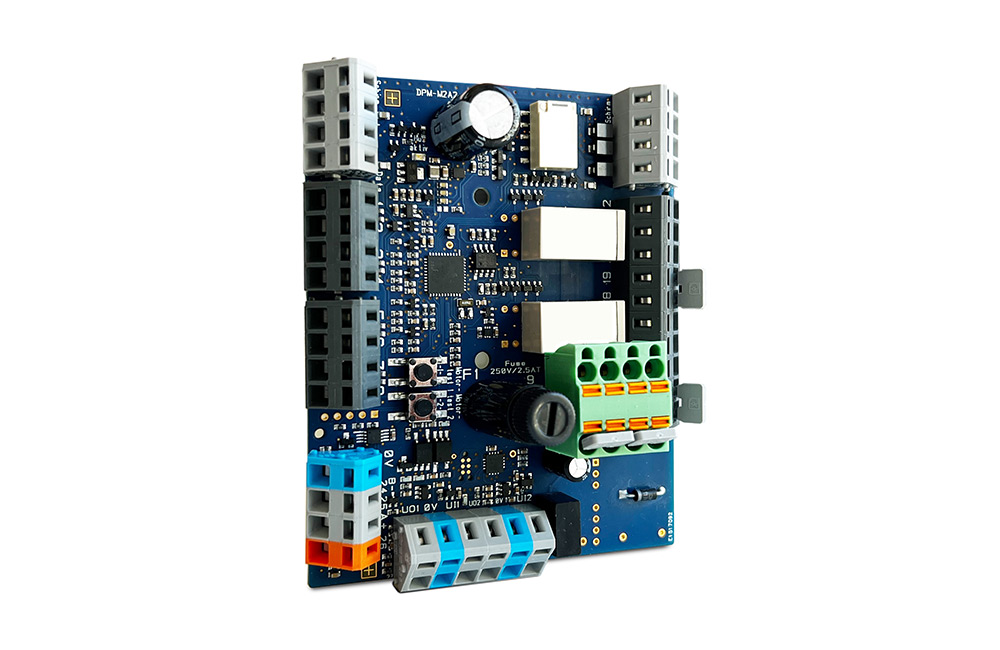

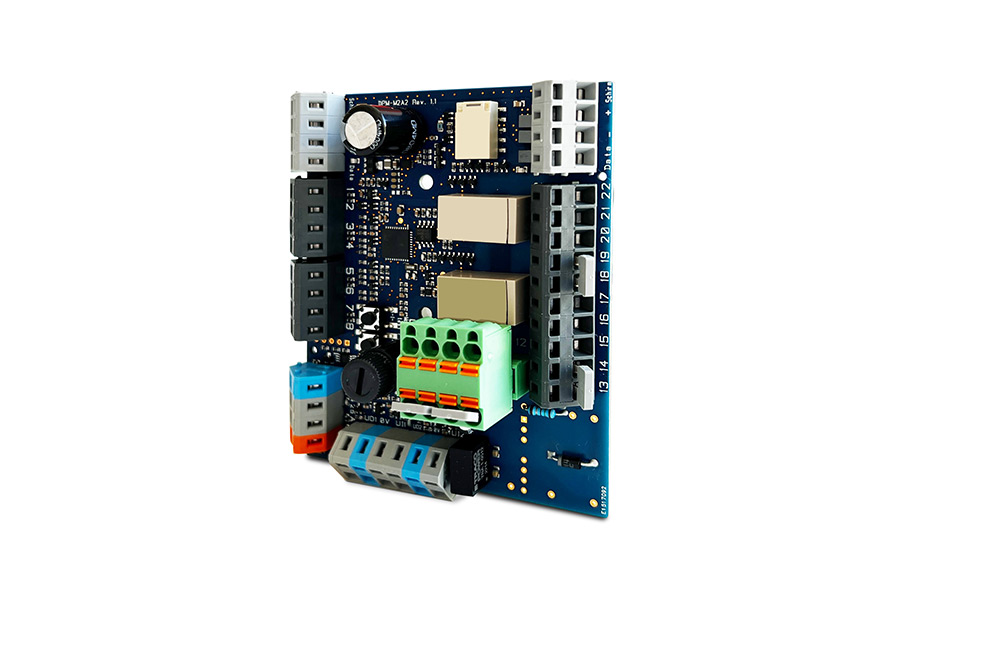

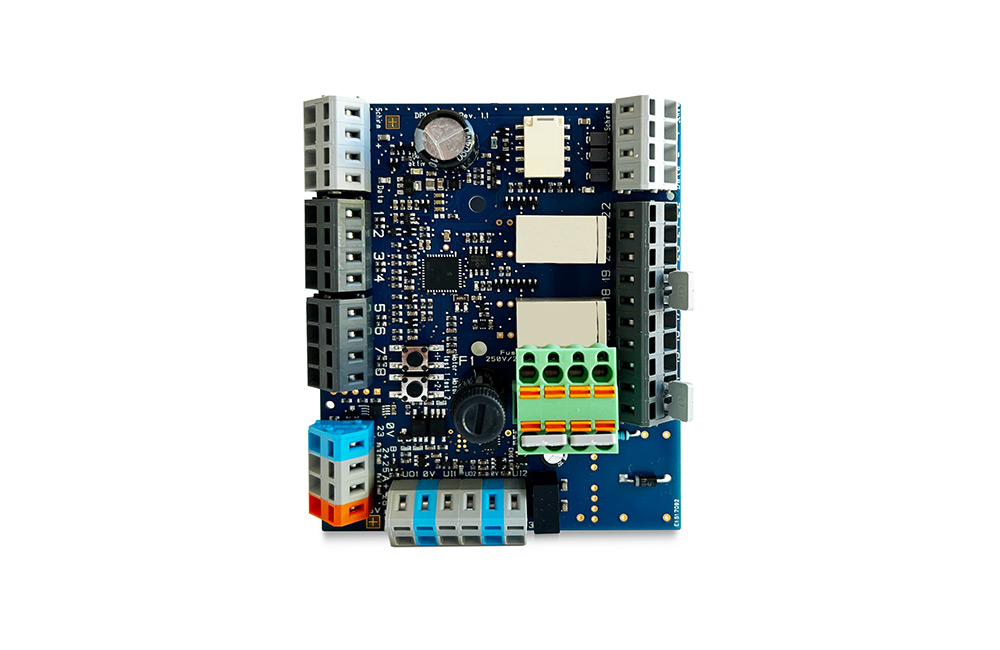

BACring DPM-M2A2
Description
The BACring DPM-M2A2 is primarily used when analog signals are required, for example for percentage-based position control of dampers or for power-dependent control of smoke extraction fans.
It combines the digital open/close logic for two motorized dampers with additional 0–10 V analog inputs and outputs for closed-loop control functions (measuring, controlling, regulating).
Communication is carried out via the BACring bus protocol.
Download PDF Datasheet
Further information
Bus voltage
20V DC +/- 2% (via DPB-Buscontroller)
Power supply 24V motors
24V AC/DC
Power supply 230V motors
100 - 240V AC
Display
Green LED as status display “BUS Activity”
Controls
- Test button motor 1
- Test button motor 2
Bus protocol
- BACring protocol
- Set the outputs within 90 msec
- Query the inputs within < 1.5 sec (regardless of the size of the ring bus)
Digital inputs
4 digital inputs for the potential-free limit switches (not isolated)
Relay outputs
2 relay outputs ( bistable changeover contacts ), galvanically isolated, can be loaded together up to 2.5A / 250V
Analog Inputs
2 analog inputs 0 - 10V, for feedback of the damper position, galvanically isolated
Analog outputs
2 analog outputs 0 - 10V, for specifying the desired damper position
Digital interface
Digital interface for connection (future use)
Motor circuit fuse
2.5 A / slow-blow 5 x 20 mm fuse for both motors

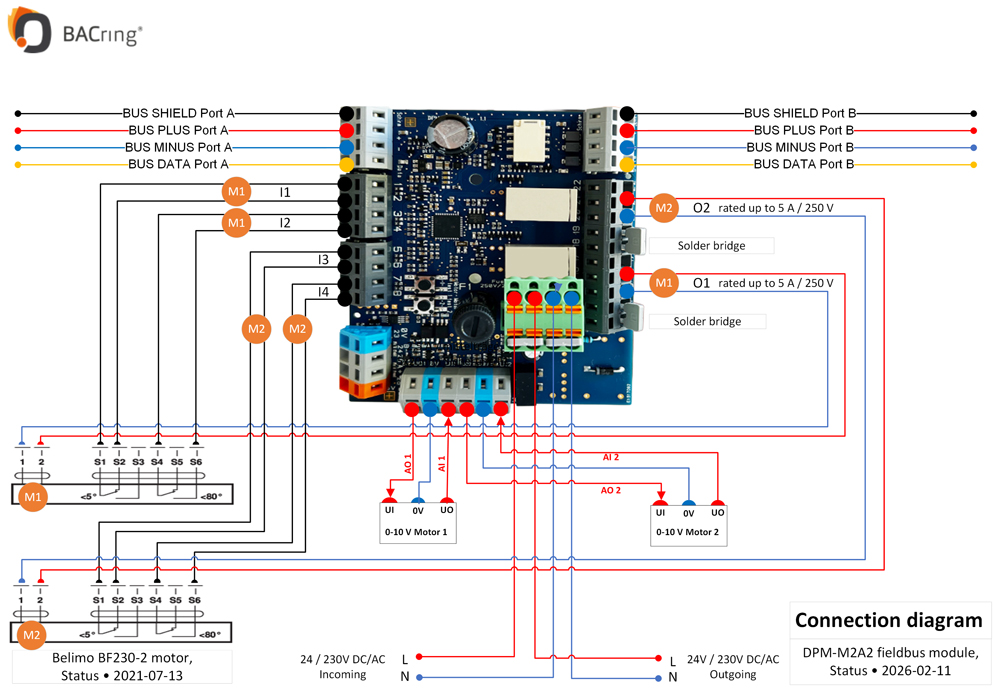

Connections
- Bus ports: WAGO spring-loaded terminals type 236 , light gray
- Inputs and motor outputs: WAGO spring-loaded terminals type 236, dark gray
- Motor supply: Phoenix Contact TFKC 2.5/4-ST-5.08 (4-pin, for looping through the motor supply)
- Digital interface (future use): WAGO spring-cage terminal blocks type 236, blue, light gray, orange
EMC conformity
2014/35/EU, EN61000-6-1, EN61000-6-3, EN61000-4-2..-5
Maintenance
Maintenance-free
Assembly
Wall mounting
Temperature
0° to +75°C
Air humidity
- Stored: 0% - 100%, non-condensing
- Operation: 0% - 100%, non-condensing
Safety class
IP 66 (M20, M25 without screws)
Dimensions (W x H x D)
180 mm x 90 mm x 180 mm
Weight
Approx. 0.4 kg

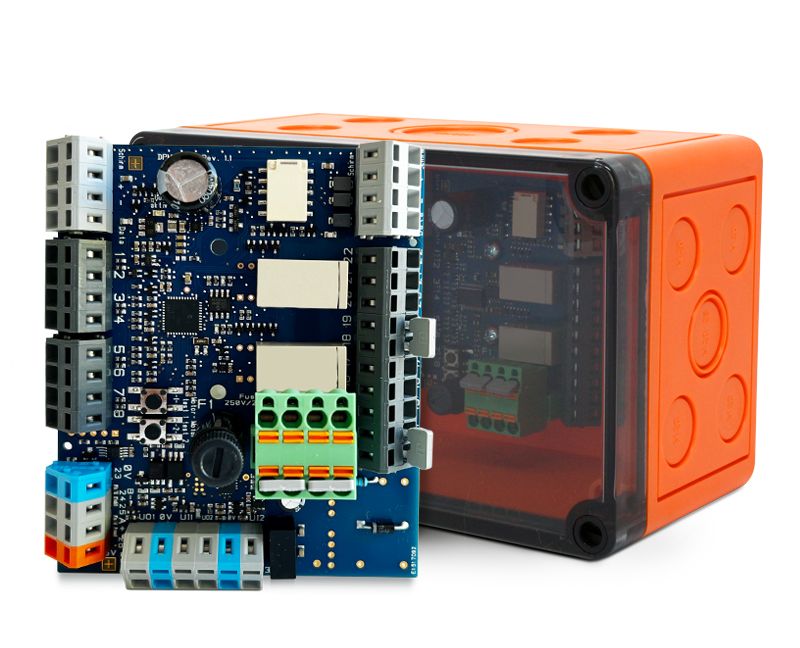

Housing
Spelsberg ( TK PS 1818-9-tm )
