BACring DPM-O24C I/O Module

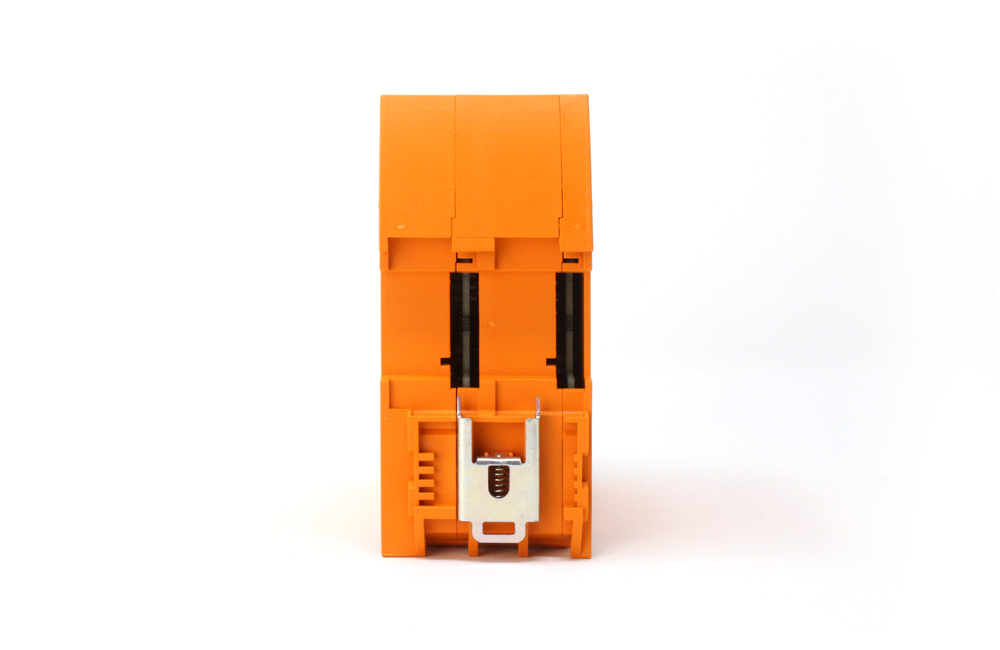

For installation in the control cabinet
Description
The maintenance-free DPM-O24C control cabinet module provides 24 digital, 24 V powered, freely programmable switching outputs.
Communication with the BACring-System is carried out via the BACring bus protocol.

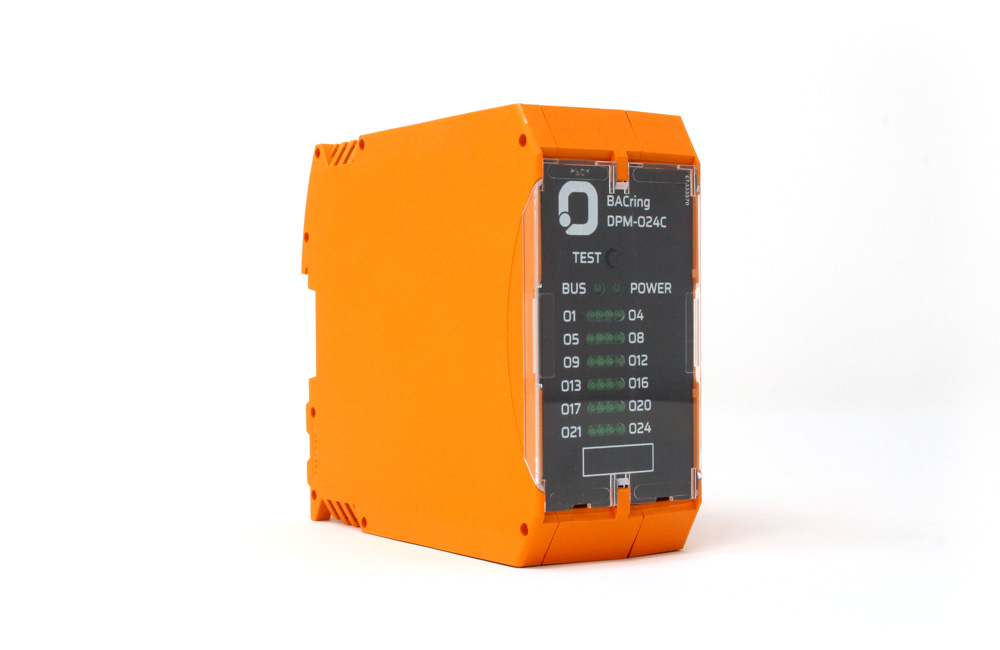

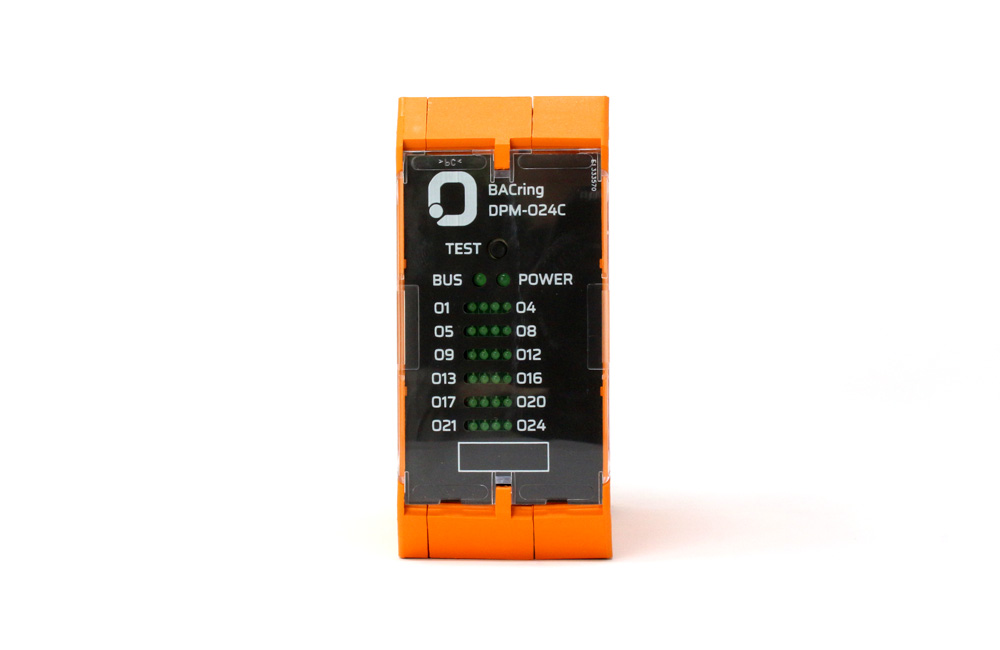

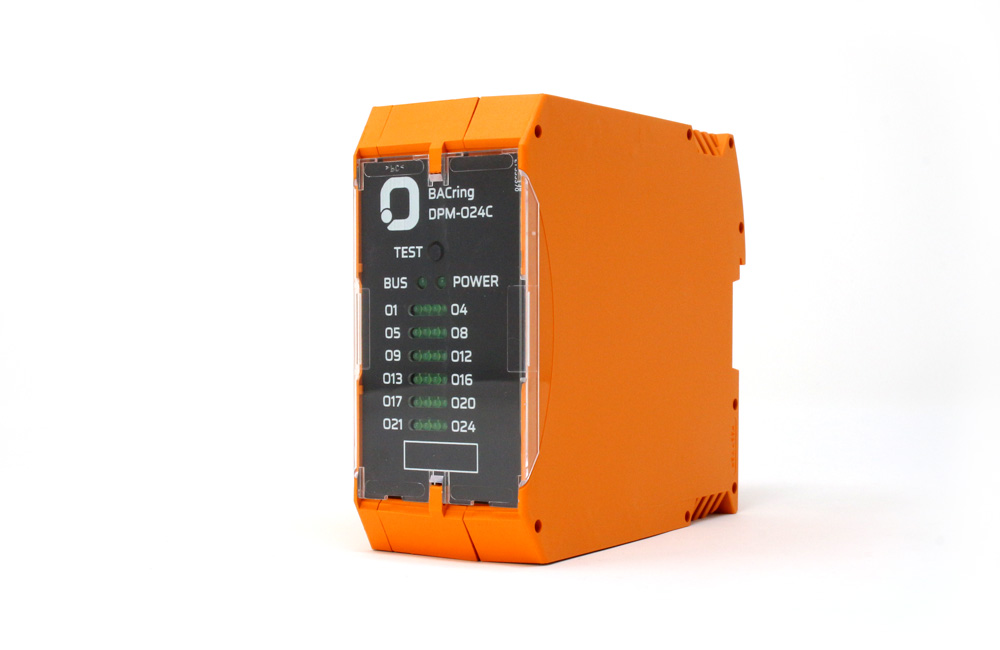

LEDs provide a clear indication of the power supply (Power), bus activity, and the individual status of outputs O1 to O24.
The module is particularly often used when multiple switching signals are required at a central location.
A typical application is installation in a fire brigade control panel. In the event of smoke extraction, the DPM-O24C controls the LED indicators of the smoke extraction zones, such as:
- Ready for operation
- Fault
- Activated
Of course, the DPM-O24C — like all BACring modules — can also be used for other applications where a large number of digital switching signals need to be provided.
Download PDF Datasheet
Further information
- +18 - 26V DC / own consumption 0.03 - 0.08 A
Imax = 200mA per output, - in total max. 2A (internal 3.15 A fuse)
- Transistor output galvanically coupled
- 2 green LEDs for the “POWER” display and the “BUS Activity”
- 24 green LEDs show the status of the outputs O1 - O24
Setting the outputs within 90 msec

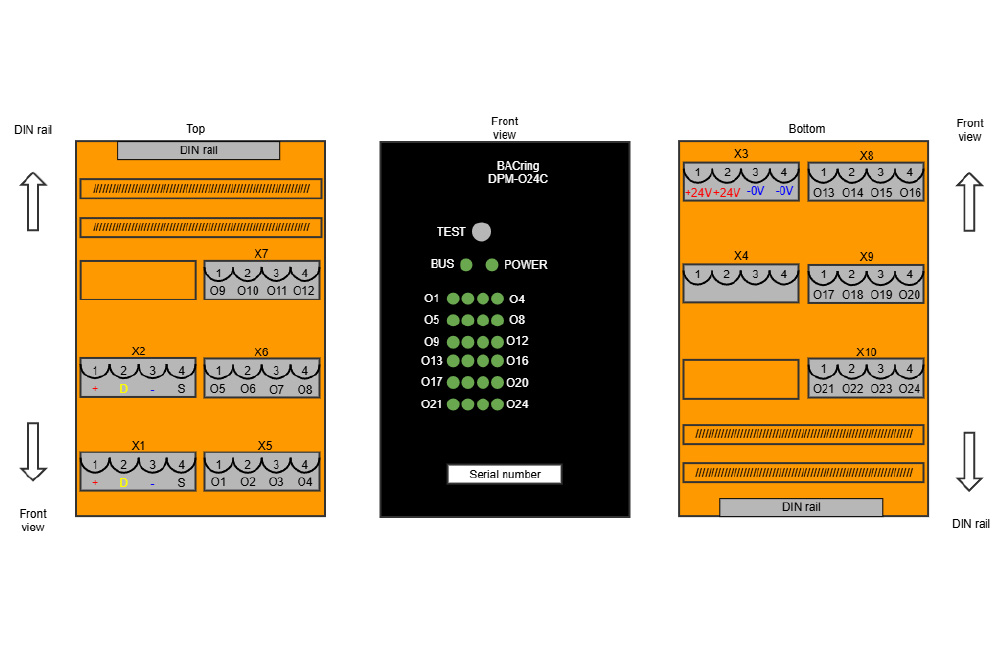

- Bus ports: 2 x Phoenix Contact FKCT 2.5/4-STKMGY (4-pin, female)
- 24 outputs: 6 x Phoenix Contact FKCT 2.5/4-STKMGY (4-pin, female)
- +24V supply: 1 x Phoenix Contact FKCT 2.5/4-STKMGY (4-pin, female)
- Test input: 1 x Phoenix Contact FKCT 2.5/4-STKMGY (4-pin, female)
- Storage: 0% - 80%, non-condensing
- Operation: 0% - 70%, non-condensing
